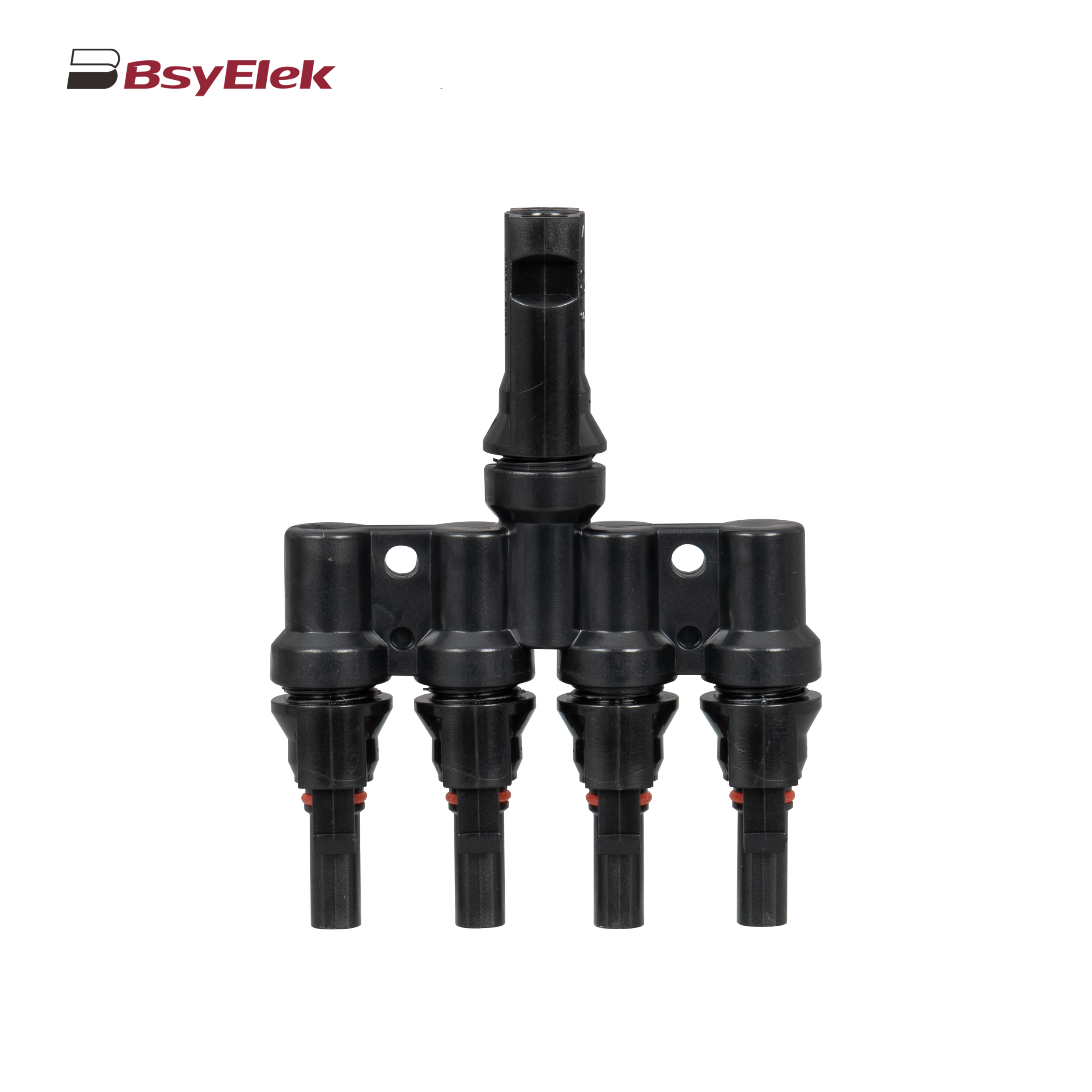

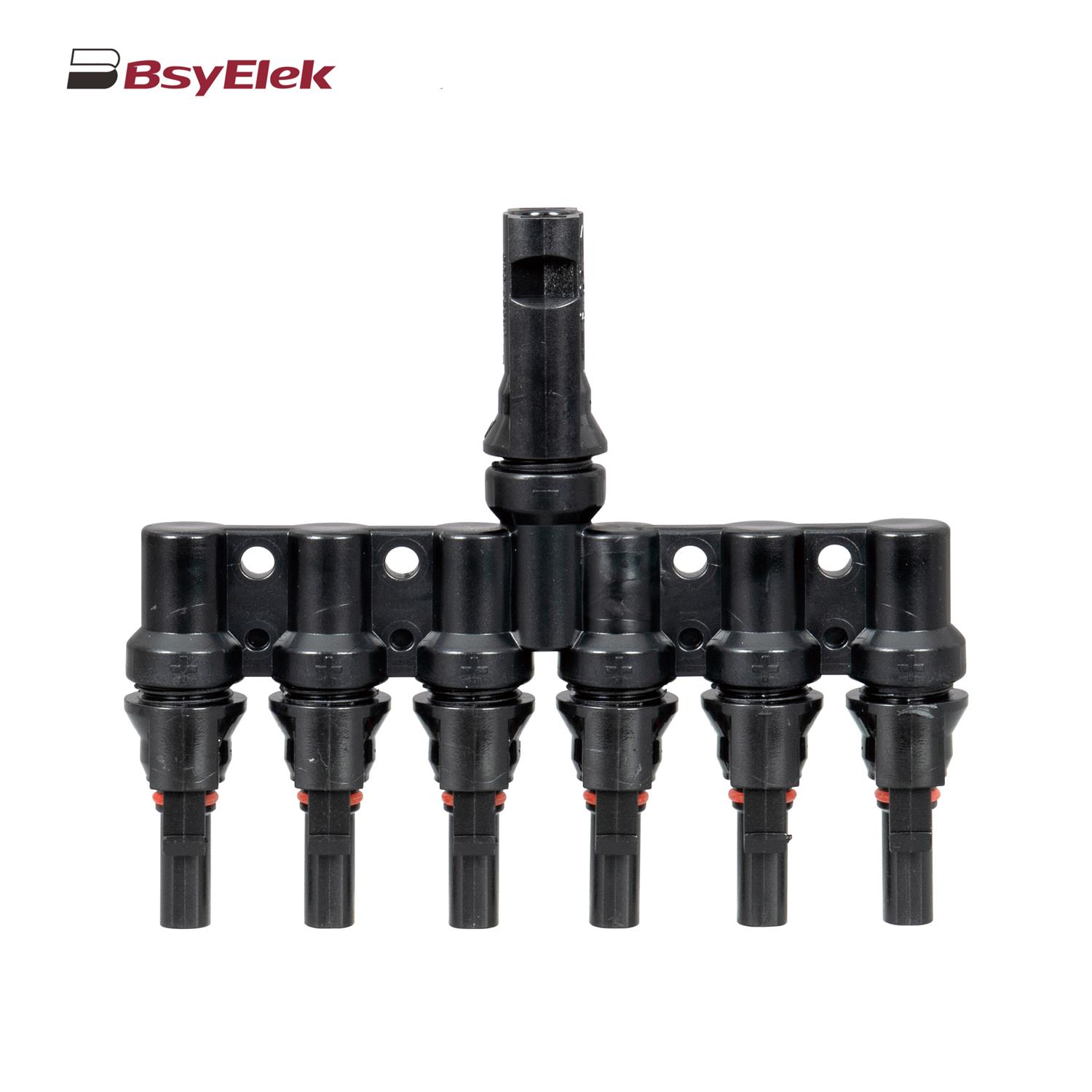

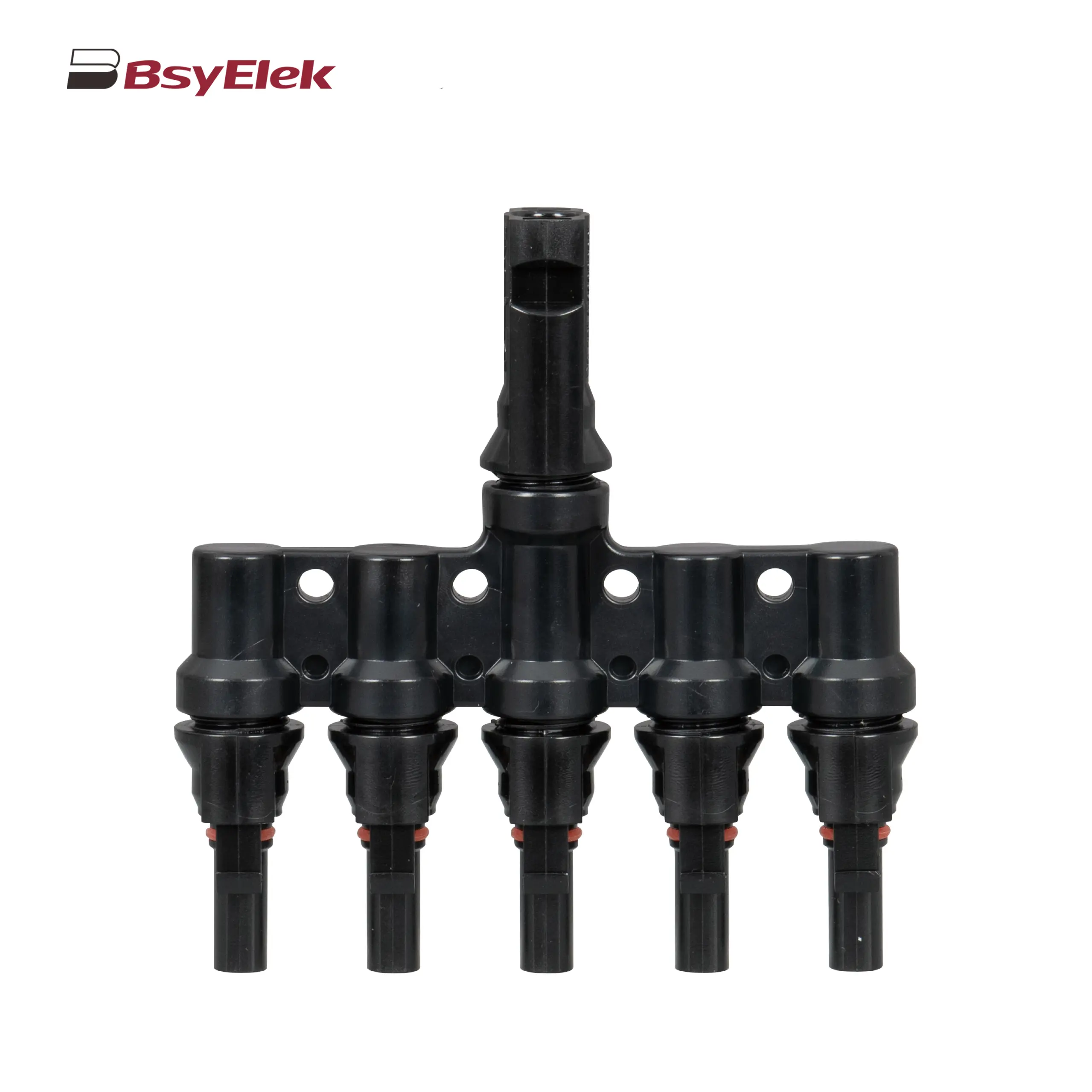

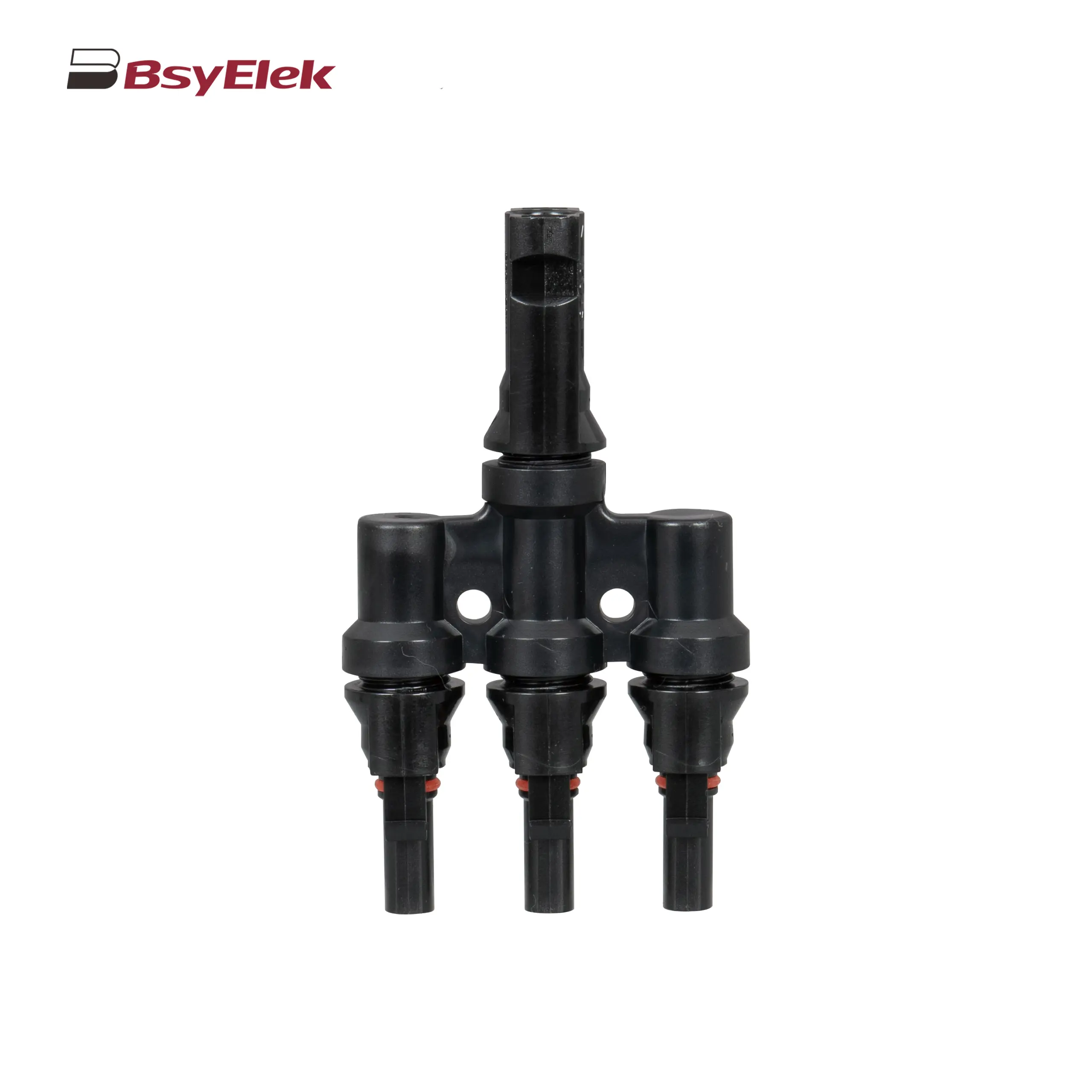

PV-BY-T 50A 1500V T Type Branch Connector

Product Features

• The PV-BY-T series 50A 1500V T-branch connector can handle rated current of 50A and rated voltage of 1500VDC (IEC) or 800VDC (UL). This versatility makes it an ideal choice for residential and commercial solar installations, ensuring optimal performance and reliability under various environmental conditions.
• One of the main characteristics of PV-BY-T series connector is the ambient temperature range (-40 ° C to+90 ° C). This extensive temperature tolerance ensures that the connector can operate effectively in various climates, from cold winters to hot summers. In addition, the connector has a protection level of IP68 when plugged in and IP2X when unplugged, with excellent dust and water resistance performance. This level of protection is crucial for maintaining the integrity of electrical connections in outdoor environments, as exposure to outdoor environments may lead to premature failure.
• The structure of PV-BY-T series connector further enhances its reliability. The contact resistance of the connector plug is only 0.5mΩ, minimizing energy loss and maximizing power transmission efficiency. The contact material is made of copper and tinned to ensure excellent conductivity and corrosion resistance, which is crucial for long-term performance. In addition, the buckle locking system compatible with MC4 connectors can provide a safe and stable connection, reducing the risk of accidental disconnection during operation.
• In terms of compatibility, the PV-BY-T seires connector can accommodate a variety of cable sizes, including 2.5mm², 4mm², and 6mm², enabling it to meet various installation requirements. The option of integrating Schottky diodes or photovoltaic fuses adds an additional protective layer to protect the system from potential overcurrent conditions. This connector has a UL94-HB/UL94-V0 flame retardant rating and meets strict safety standards to ensure it can withstand high temperatures without affecting performance.

Technical Parameters

Dimensions
