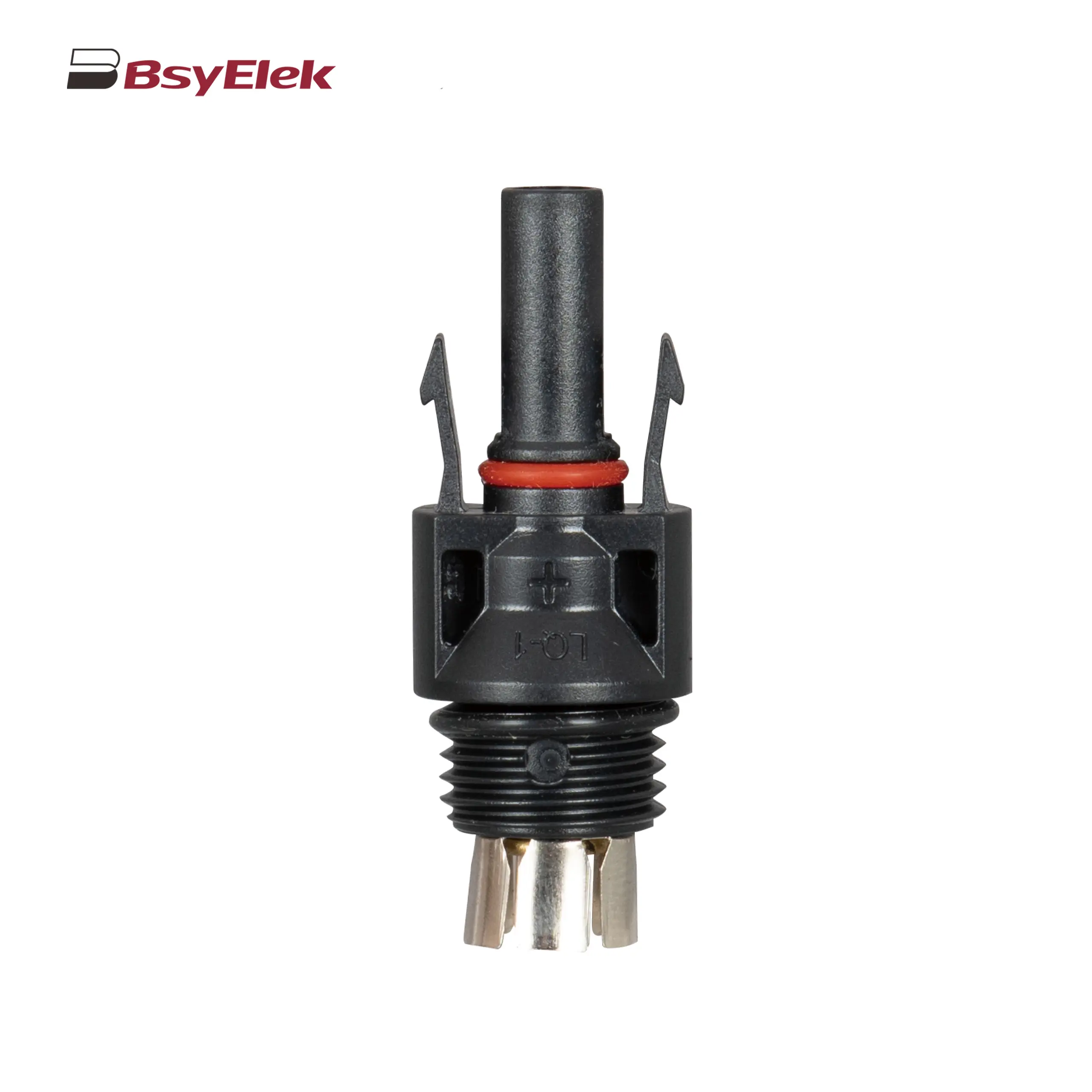

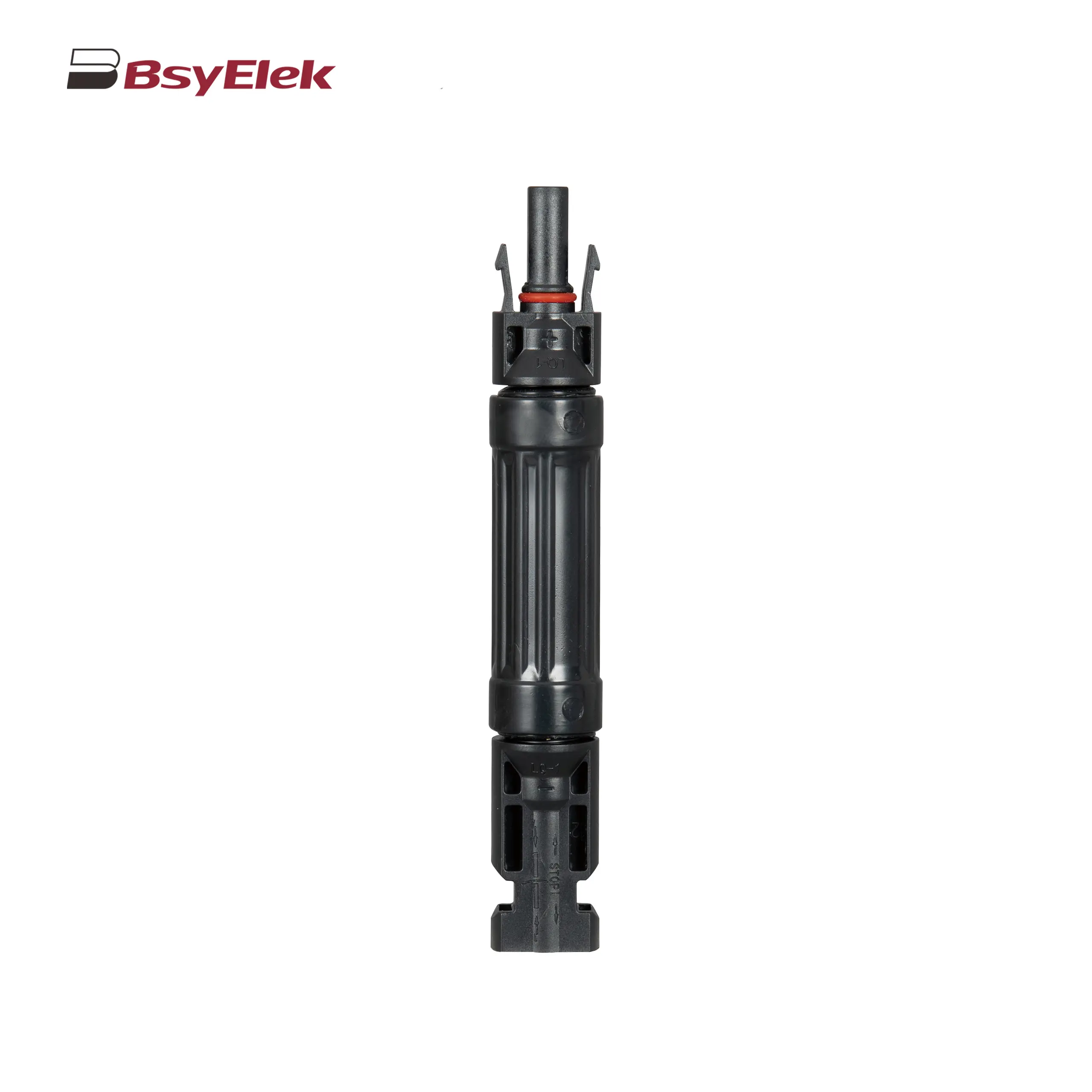

PV-BY-F01 30A 1500V Diode/Fuse Type Connector

Product Features

• PV-BY-F01 series 30A 1500V diode/fuse type connector is a high-performance connector designed specifically for photovoltaic systems. Having multiple superior technical parameters to ensure reliability and safety under various environmental conditions.
• The rated current of the connector is 30A, which can meet the needs of most photovoltaic applications and ensure stability under high load conditions. Its rated voltage is 1500VDC (compliant with IEC standards) and 800VDC (compliant with UL standards), making it widely applicable in the international market and able to adapt to electrical standards in different countries and regions.
• In terms of environmental adaptability, the PV-BY-F01 series PV connector has a working temperature range of -40 ° C to+90 ° C, allowing it to operate normally under extreme weather conditions, making it particularly suitable for outdoor installation of solar energy systems. Whether in cold northern regions or hot southern regions, connectors can maintain good performance. In addition, its protection level reaches IP68, which means it has extremely high dust and water resistance, and can maintain stable electrical connections in humid or dusty environments.
• The contact resistance of the connector is only 0.5m Ω. This low contact resistance ensures effective transmission of current, reduces energy loss, and improves the overall efficiency of the system. The contact material is made of highly conductive copper and plated with tin to further enhance its corrosion resistance and conductivity, ensuring long-term reliability.
• In terms of connection method, the connector adopts a snap on locking system (nur/MC4 only), which makes the connection process simple and fast, while also ensuring the firmness of the connection and avoiding looseness caused by vibration or other external forces. In terms of flame retardant rating, the connector complies with UL94-HB and UL94-V0 standards and has good flame retardant performance, further improving the safety of use.

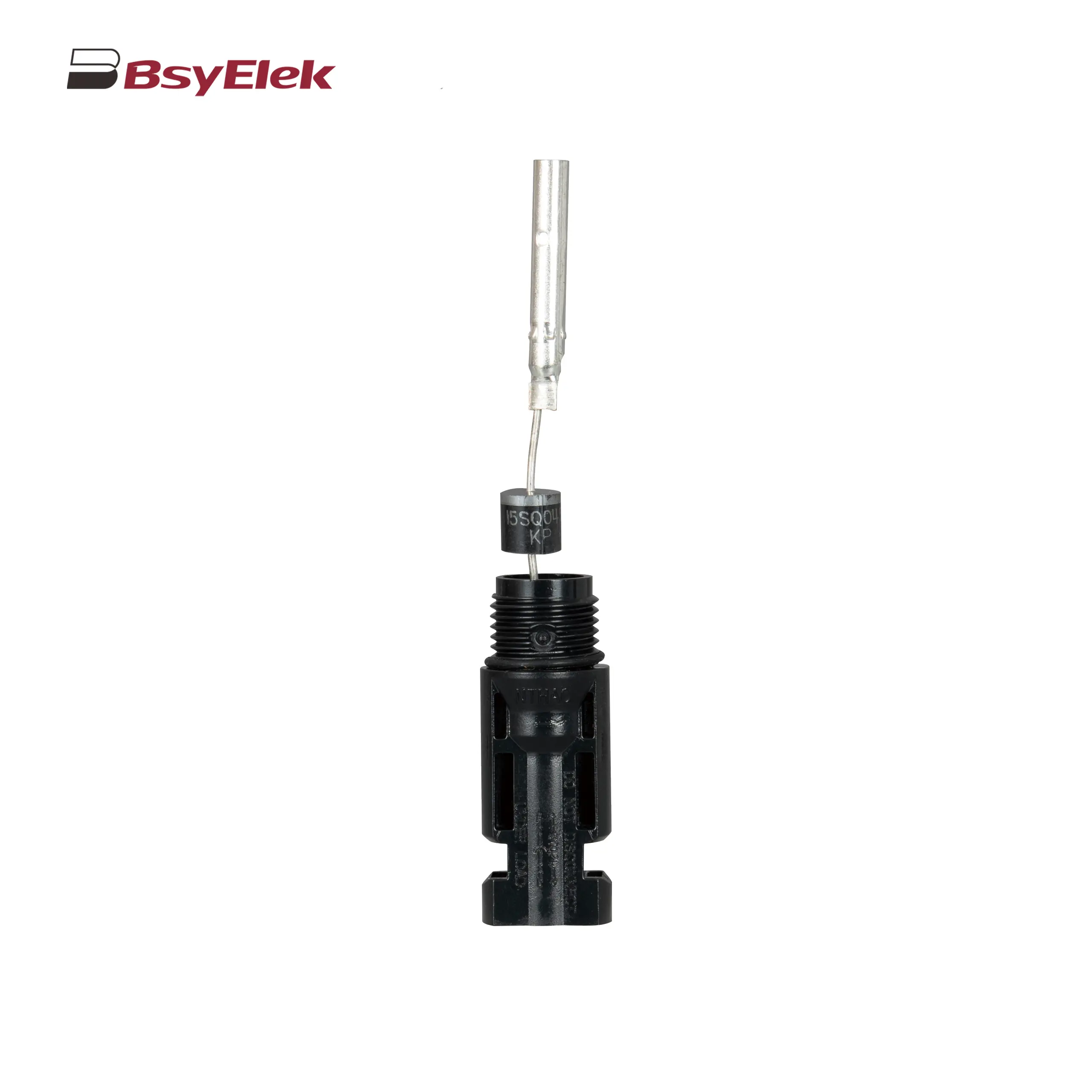

• In addition, the PV-BY-F01 series connector supports multiple cable sizes, including 2.5mm², 4mm², and 6mm², to meet different installation requirements and provide flexible choices. In the configuration of diodes and fuses, Schottky diodes and photovoltaic fuses are used to ensure effective protection of the system in the event of overload or short circuit, extending the service life of the equipment.

Technical Parameters

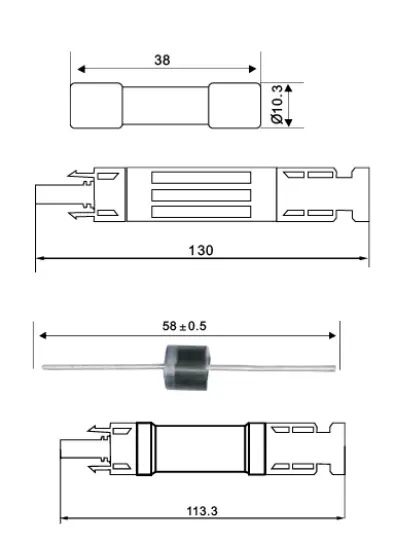

Dimensions
