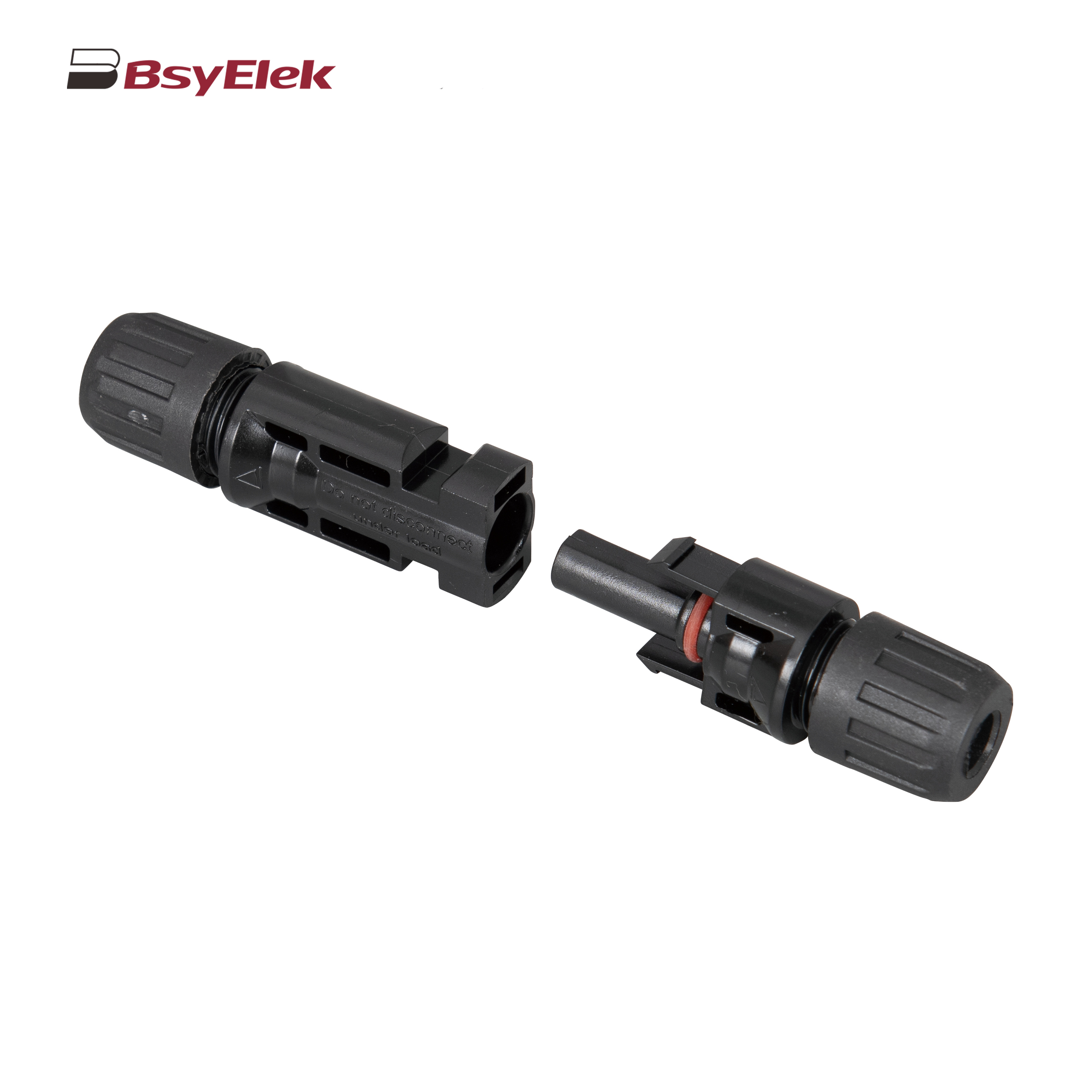

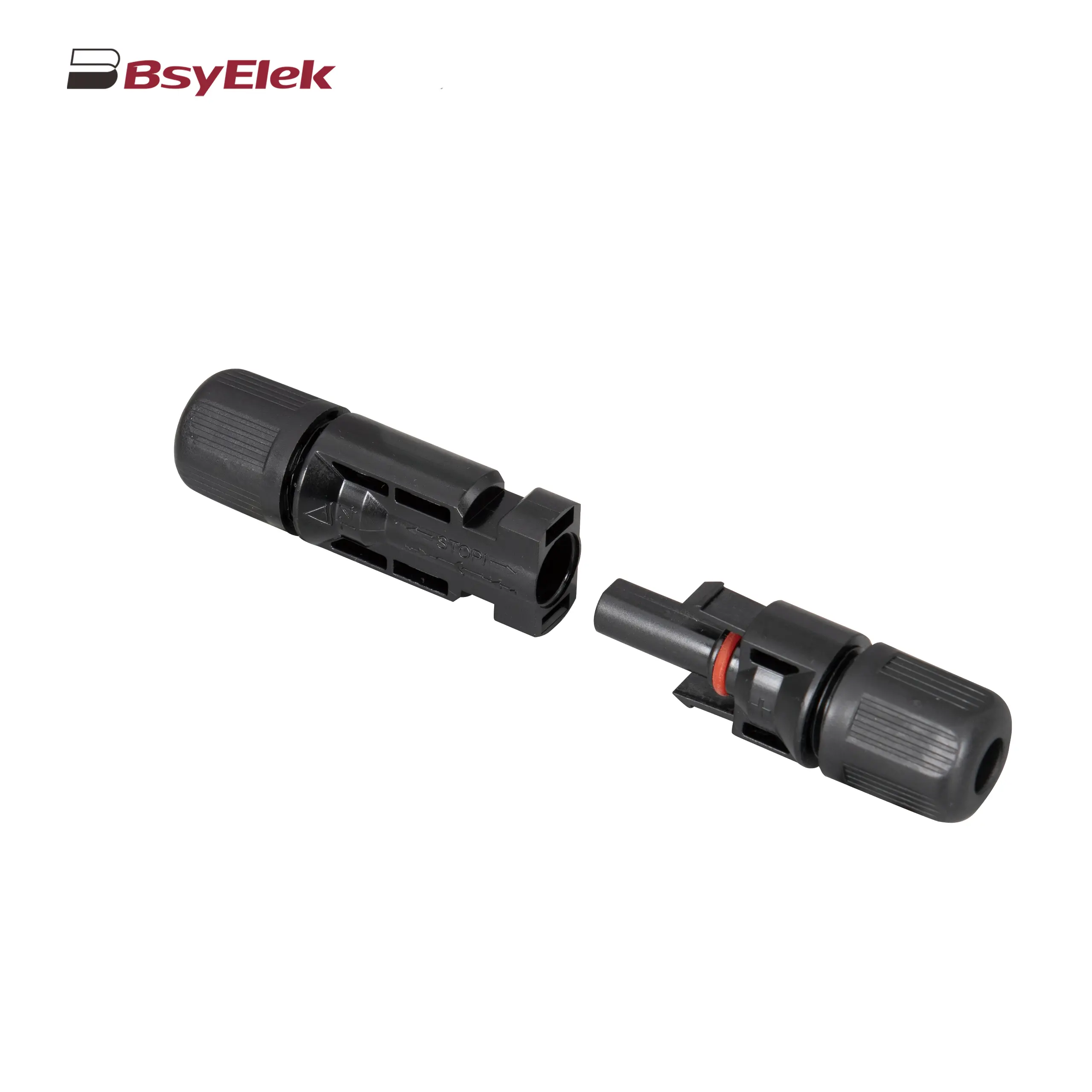

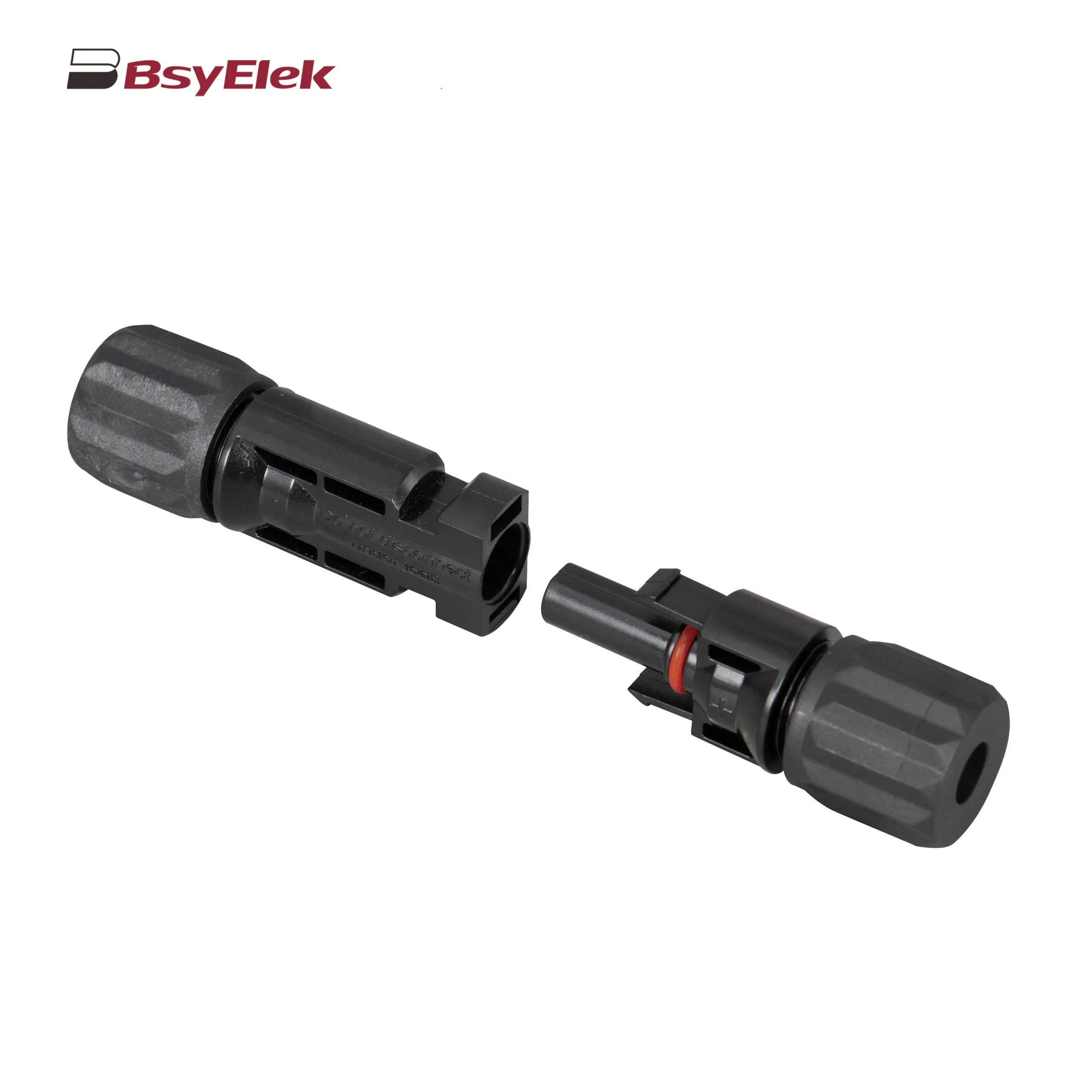

PV-BY-01 30A/50A 1000V Photovoltaic Connector

Product Features

• High current carrying capacity and voltage resistance performance
  PV-BY-01 adopts high-purity copper alloy conductor and silver plating process to ensure ultra-low impedance under continuous operating current of 30A (standard model) and 50A (enhanced model), reducing energy loss. The rated voltage design of 1000V can adapt to current mainstream double-sided components and high-power string schemes, easily dealing with voltage fluctuations in complex power grid environments.
• 24/7 protection and durability
  The shell is made of anti ultraviolet modified engineering plastic (UL94 V-0 flame retardant grade), with a double-layer sealing structure (IP68 protection grade), which can resist the extreme temperature of -40 ℃ to+120 ℃, strong wind and sand and rainstorm, and ensure stable operation within a 25 year service life cycle. The unique plug-in self-locking design further prevents accidental detachment and enhances system security.
• Intelligent compatibility and fast installation
  The product strictly follows the international standards IEC 62852 and UL 6703, is compatible with mainstream brand MC4 interfaces, and supports plug and play. Pre installed guide slots and foolproof design simplify the installation process, and wiring can be completed without the need for professional tools, saving more than 50% of construction time.
• Industrial and commercial distributed power station: adapted to the dense arrangement of rooftop photovoltaic arrays, compact structure saves space, and supports high-density current transmission.
• Household energy storage system: With insulation performance and dual grounding design certified by T Ü V, it ensures the electrical safety of household users.
• Desert and coastal large-scale power stations: Anti salt spray corrosion coatings and dust-proof structures effectively cope with harsh environments and reduce operation and maintenance costs.
• Mobile photovoltaic equipment: Lightweight design (single weight<50g) and seismic performance meet the flexible deployment requirements of on-board and off grid equipment.

Technical Parameters

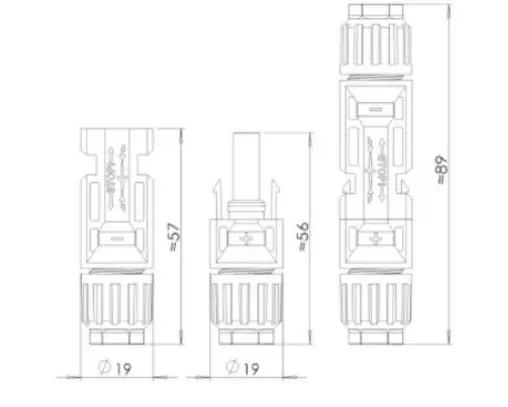

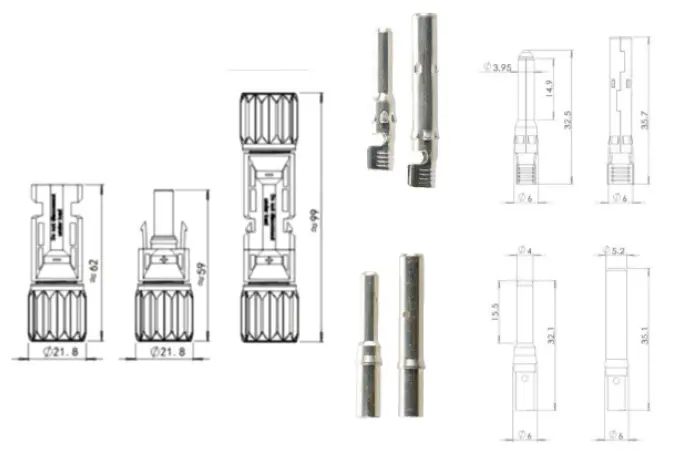

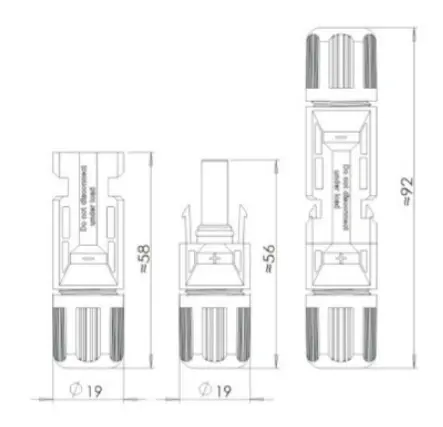

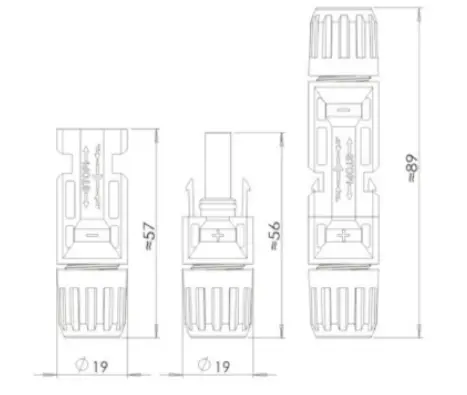

Dimensions
