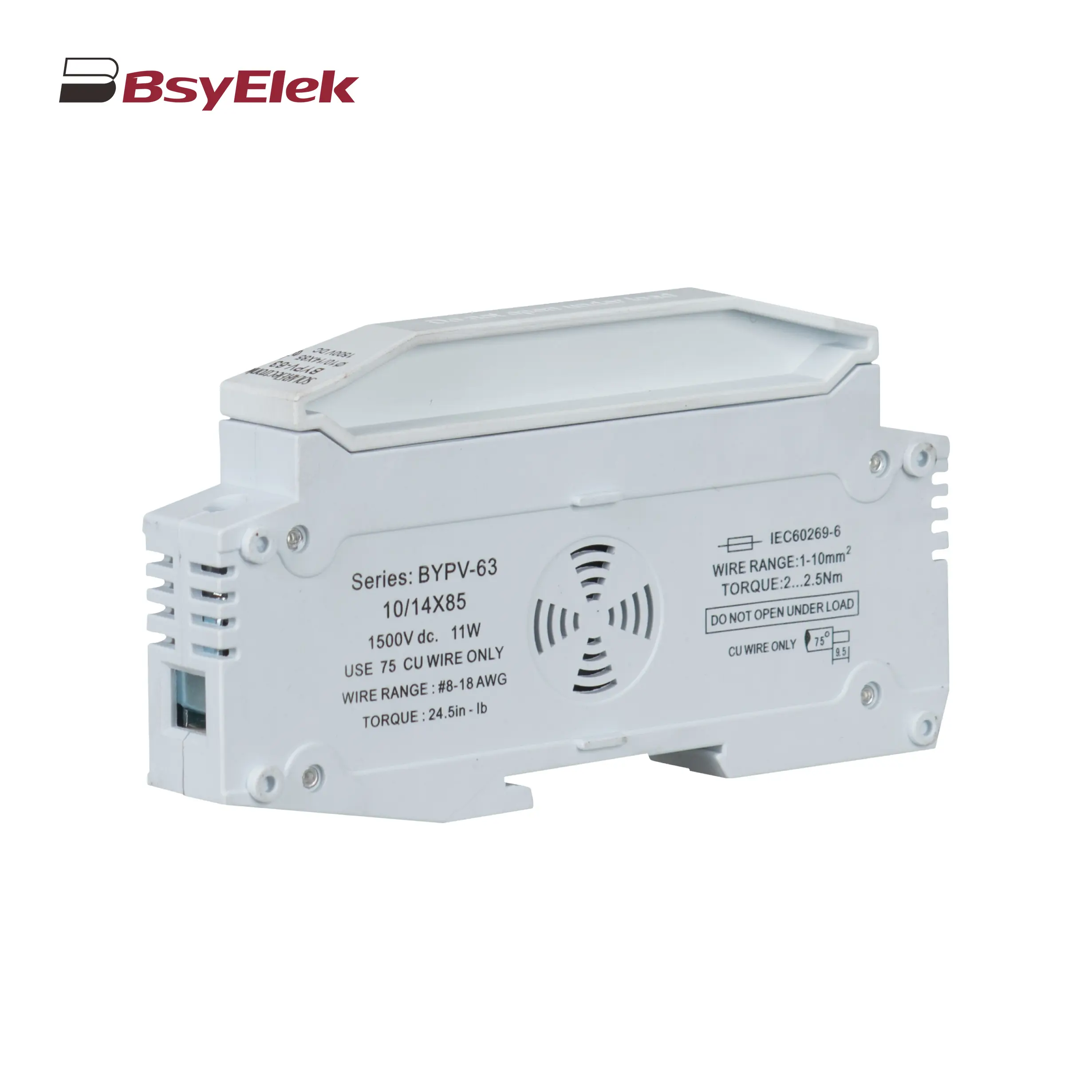

BYPV-63 1500VDC 50A Fuse Holder with 10x85mm 14x85mm Fuse Link

Product Features

• The BYPV-63 series DC fuse is a powerful solution for short-circuit and overload protection in distribution lines. These fuse holders are designed with a rated voltage of 1500VDC and a rated current of 50A, aimed at meeting the needs of modern electrical systems.

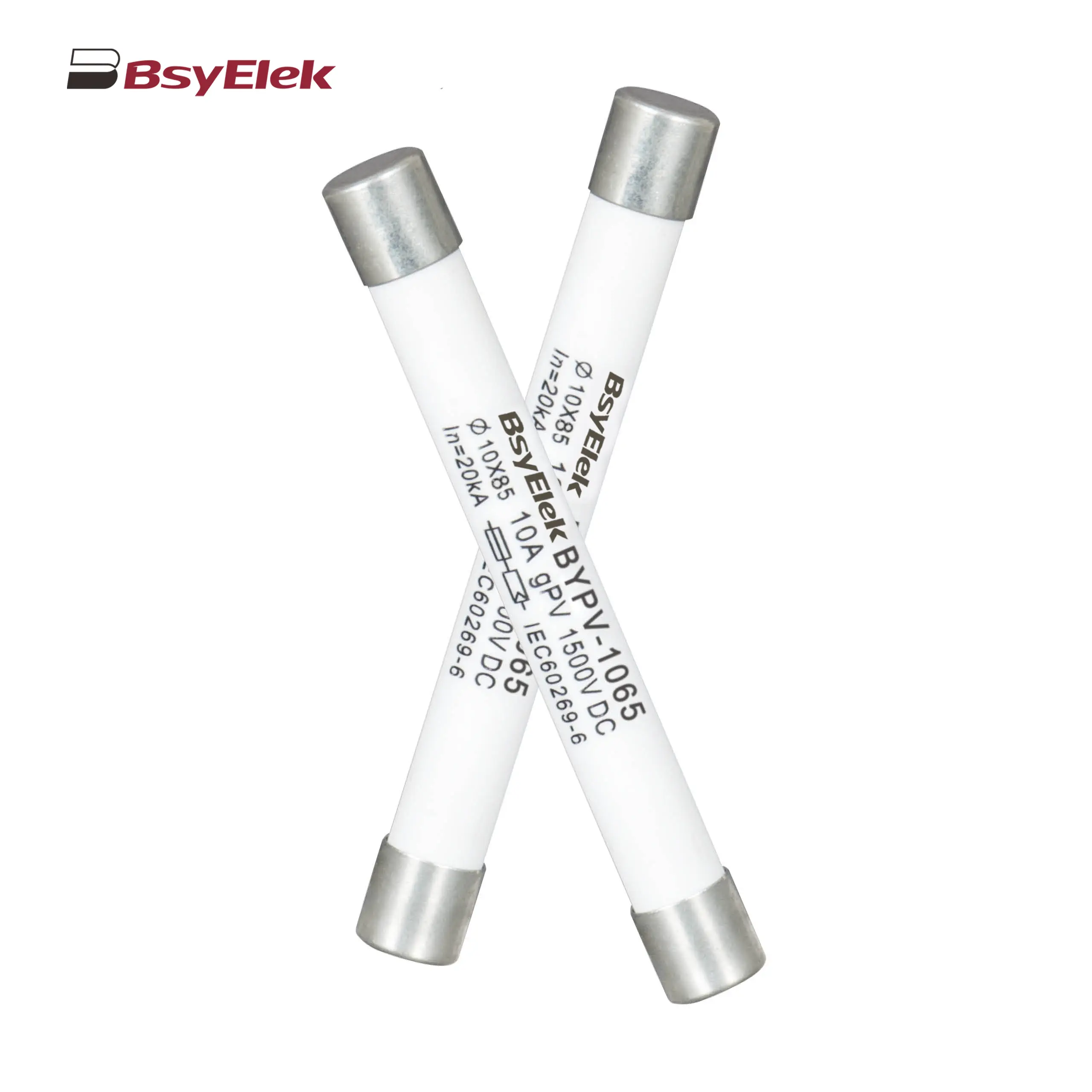

• The BYPV-63 DC fuse is specifically designed to accommodate fuses in sizes of 10x85mm and 14x85mm, making it suitable for various applications. This adaptability allows seamless integration into existing systems, ensuring that users can choose the appropriate fuse according to their specific requirements. The design of the fuse holder is not only easy to install, but also ensures a secure installation, minimizing the risk of accidental disconnection or malfunction during operation.
• One of the prominent features of the BYPV-63 series DC fuse is its rated short-circuit capacity of 20kA or less. This high short-circuit capability is crucial for protecting circuits from the potential destructive effects of short circuits. When a malfunction occurs, the fuse acts as a sacrificial element, disconnecting the circuit and preventing further damage to the system. This protection mechanism is crucial for maintaining the integrity of distribution lines and protecting equipment and personnel from electrical hazards.
• The BYPV-63 series DC fuse is made of high-quality materials to ensure durability and service life. The sturdy design can withstand harsh environmental conditions, making it suitable for both indoor and outdoor applications. This resilience is particularly important for industries such as renewable energy, as their equipment is often exposed to extreme weather conditions..
• The BYPV-63 series 1500VDC 50A fuse holder, combined with 10x85mm and 14x85mm fuse links, provides a comprehensive solution for short-circuit and overload protection of distribution lines. Its high rated voltage and current capability, coupled with strong short-circuit capability, make it an ideal choice for modern electrical systems. The durable structure and easy installation further enhance its appeal, ensuring that users can rely on the product to meet their safety and operational needs.

Technical Parameters

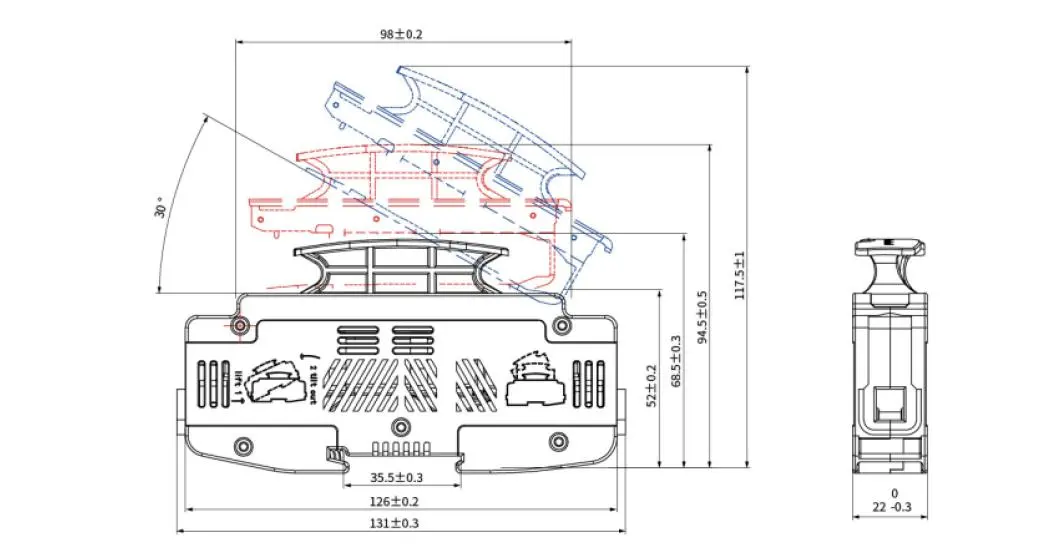

Dimensions
