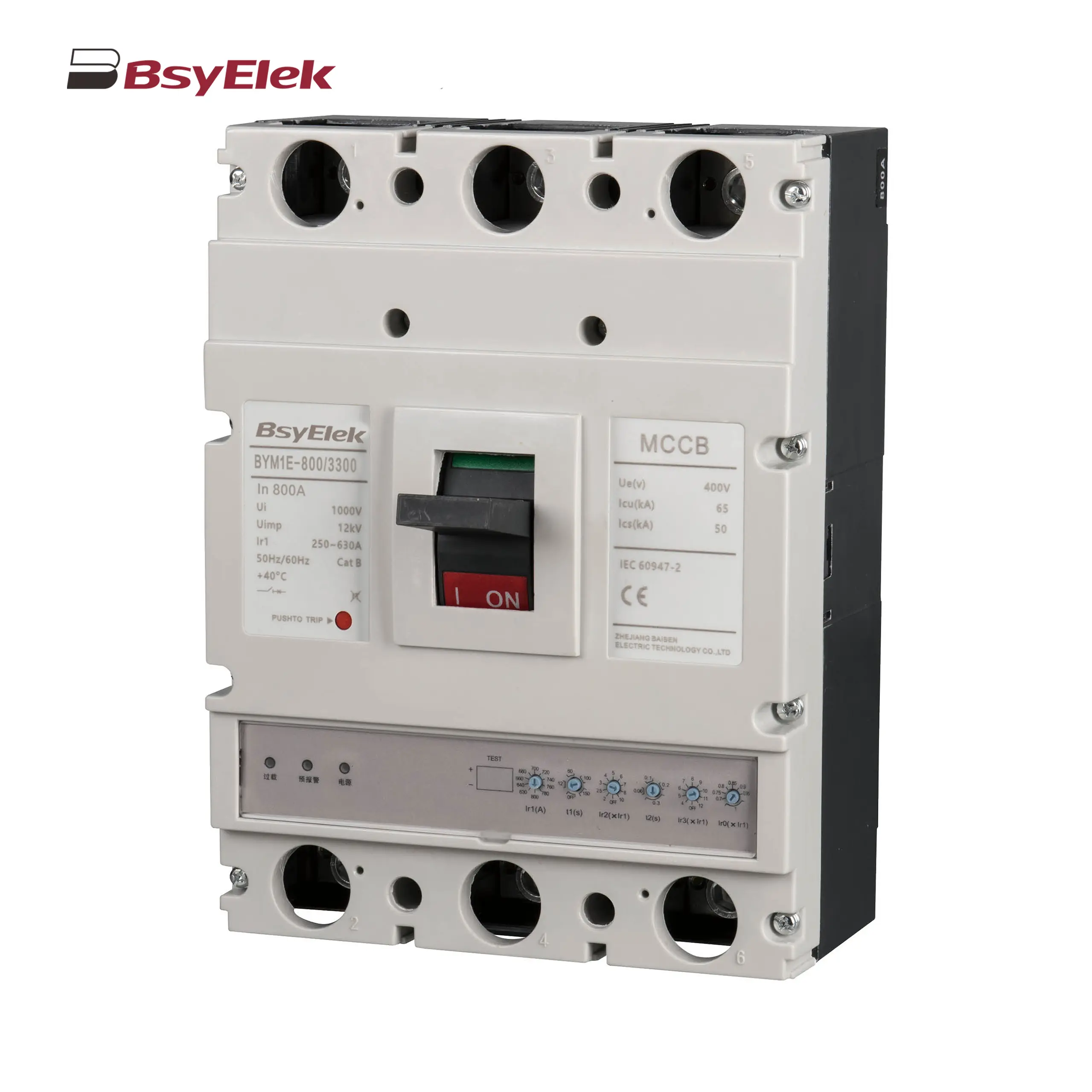

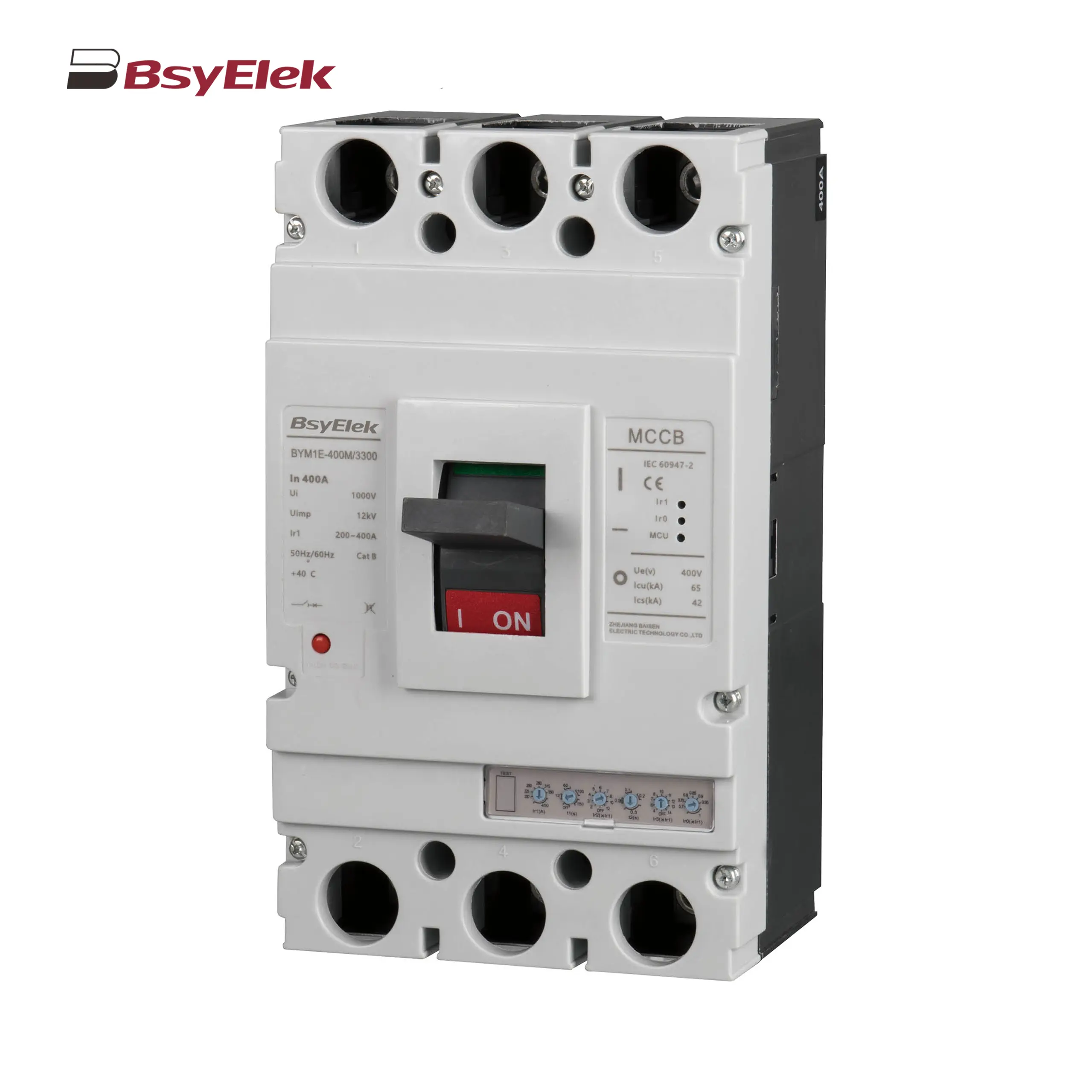

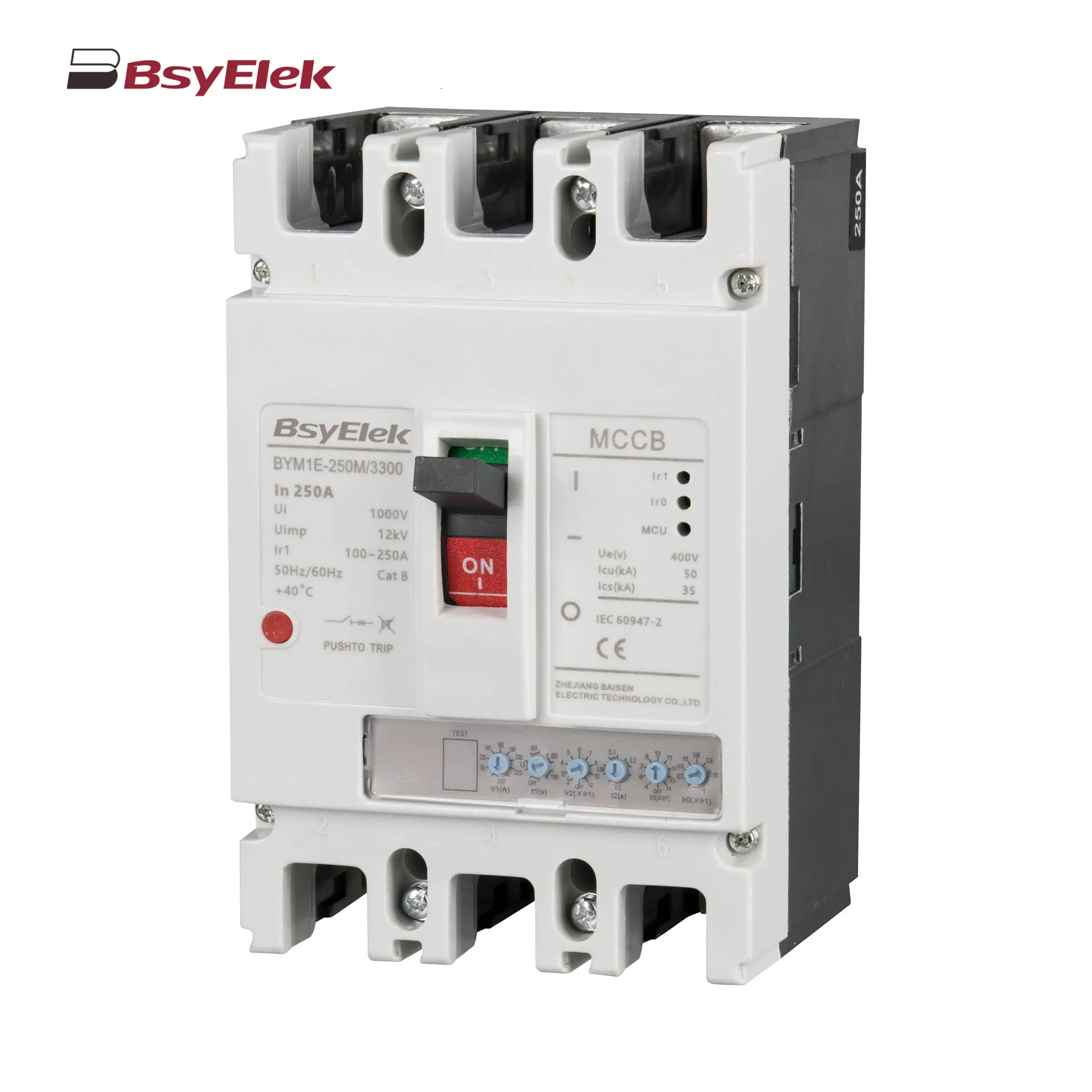

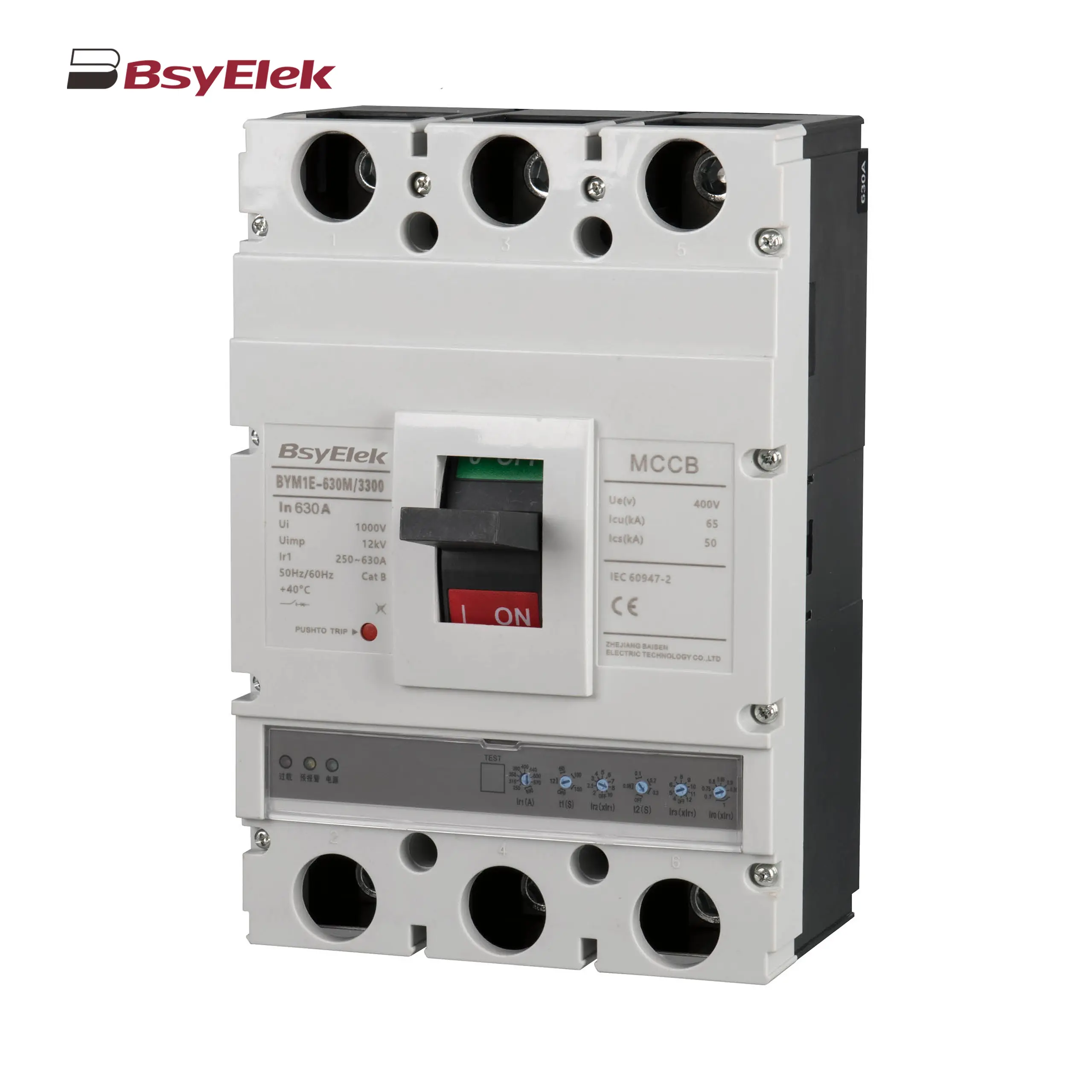

BYM1E MCCB Electronic Type Molded Case Circuit Breaker

Product Features

• The BYM1E series electronic type molded case circuit breaker (MCCB) is designed for use in circuits with a rated insulation voltage up to 1000V, AC frequency of 50/60Hz, rated voltage up to 400V, and rated current up to 1600A. Available in 3P and 4P configurations, this MCCB is ideal for protecting circuits and power equipment from overloads, short circuits, undervoltage, and other potential hazards. It ensures safe and reliable energy distribution in industrial, commercial, and large-scale electrical systems. The BYM1E series electronic type MCCB provides comprehensive protection for both circuits and connected power equipment. It safeguards against overloads, short circuits, and undervoltage, ensuring reliable operation and minimizing downtime.
• The BYM1E series electronic type MCCB can be installed either vertically or horizontally, offering flexibility for different installation environments and space constraints. The MCCB features a clear line configuration where terminals 1, 3, and 5 connect to the power line, while terminals 2, 4, and 6 connect to the load line. This ensures easy wiring and setup.
• Built for durability, the BYM1E series electronic tyep MCCB is engineered to handle high-performance applications, with the capability to manage significant electrical loads while providing consistent protection against faults. The BYM1E series electronic tyep MCCB is suited for a variety of applications, including power distribution, industrial machinery, and renewable energy systems. Its high-rated current capacity and advanced protection features make it a reliable choice for demanding environments.

Functions

• Three-section protection function
• Five tripping characteristics: users can set and adjust releae according to load current requirement
• Electronic release: power is provided by the breaker
• Current signal and power control: from ring current transformer in the breaker
• Alarm indication function
• Overload indication function
• Special fire-protection overload no-release alarm function

Classification

• Wiring method: front connection, rear connection, plug-in type
• With or without accessories
• Interior accessories: shunt release, undervoltage release, overload alarm, auxiliary contact, alarm contact
• Exterior accessories: turning hande operating mechanism, electro-control mechanism

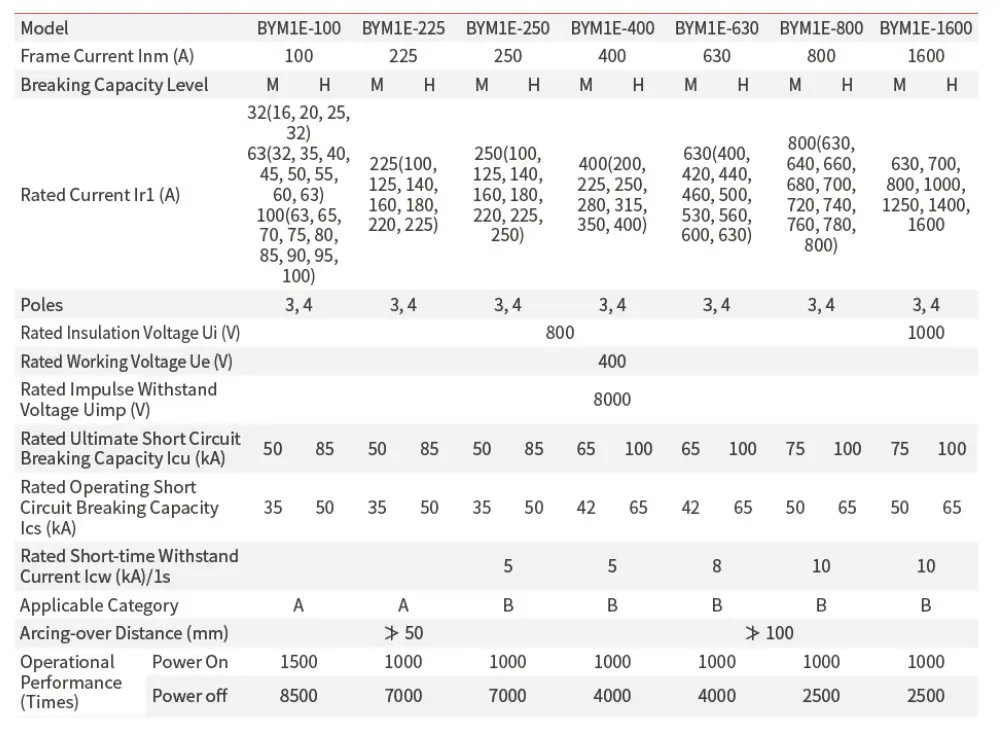

Technical Parameters
