BY01L-63 RCBO 1P+N 3KA Residual Current Circuit Breaker with Over-current Protection

Product Overview

• The BY01L-63 series 3kA RCBO (Residual Current Circuit Breaker with Over-current Protection) is an advanced protection device designed to safeguard electrical systems from over-current, short-circuit, and residual current (leakage) faults. With a rated current of up to 63A and a 1P+N pole configuration, it is tailored for single-phase systems operating at a voltage of 240V and a frequency of 50Hz, ensuring compatibility with international electrical standards.
• This RCBO combines the functions of residual current protection and over-current protection in a single compact unit, offering comprehensive safety and convenience for residential, commercial, and industrial applications. It is engineered to detect leakage currents effectively, protecting people and property from the dangers of electric shock and fire caused by ground faults. Additionally, it provides robust protection against circuit over-current and short-circuits, ensuring the safe operation of electrical systems.
• A key feature of the BY01L-63 series is its integrated indicator window, which provides a clear and convenient visual status check. This feature simplifies troubleshooting and maintenance, enhancing operational efficiency. The device is constructed with high-quality materials, ensuring durability, reliability, and a long service life, even in demanding environments.
• Compact and easy to install, the BY01L-63 series is ideal for use in modern electrical panels where space efficiency is essential. Its advanced safety features and reliable performance make it a trusted solution for comprehensive electrical protection.

Technical Parameters

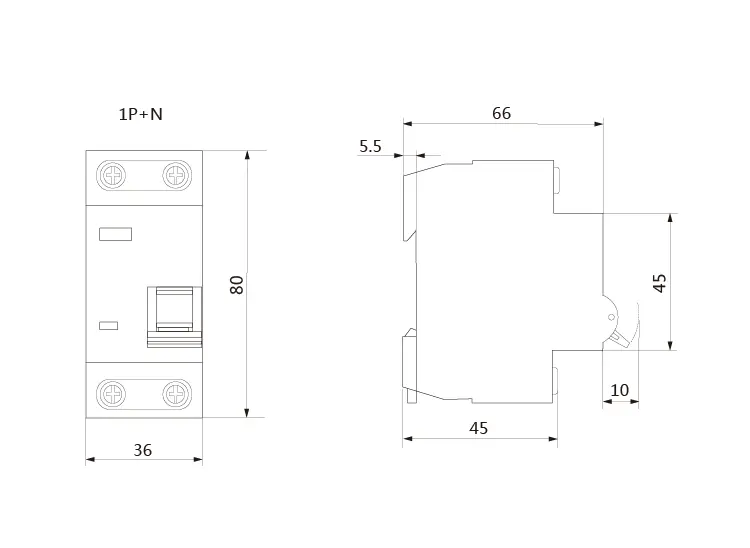

Dimensions
