What Is a Waterproof Distribution Box and How Does It Work?

A Waterproof Distribution Box protects electrical connections where rain, dust, humidity, and accidental splashes could cause failure. It usually combines a sealed enclosure, cable glands, circuit protection, terminals, and a secure cover. The enclosure’s IP rating indicates its resistance to solid particles and water under IEC 60529. IP65, for example, resists dust and water jets. It does not mean unlimited underwater use.

The market is growing with outdoor construction, renewable energy, industrial automation, and electric-vehicle infrastructure. MarketsandMarkets estimates that the global electrical enclosures market could rise from about USD 6.8 billion in 2023 to USD 9.4 billion by 2028. Grand View Research also reports steady growth in demand for protective electrical housings through the decade. These figures suggest stronger attention to enclosure reliability. Still, market growth does not replace careful product selection.

Electrical safety specialist Dr. John D. McDonald offers a useful reminder: “Reliability is created by controlling the conditions that affect the system.” His point applies directly here. A box may look sealed, yet a poorly tightened gland can admit water. Condensation can collect beneath the cover. Small details matter.

This guide explains how a Waterproof Distribution Box works, how its IP rating is tested, and where installation mistakes commonly occur. It also examines materials, drainage, ventilation, cable entry, and maintenance. One point deserves reflection: “waterproof” is often used too casually. No enclosure stays dependable when its rating, installation method, and environment are mismatched.

Table of Contents [Hide]

1 What Is a Waterproof Distribution Box?

2 How Is a Waterproof Distribution Box Designed?

3 How Does a Waterproof Distribution Box Work?

4 What Components Are Found Inside the Box?

5 Where Are Waterproof Distribution Boxes Used?

What Is a Waterproof Distribution Box?

A waterproof distribution box protects electrical connections from rain, spray, dust, and accidental splashing. It usually contains terminals, circuit breakers, or cable connectors inside a sealed enclosure. The box routes power safely between incoming and outgoing circuits. Think of it as a dry junction point outdoors.

Its protection level is measured by the IP code under IEC 60529. The first digit rates solid-particle protection, while the second rates water resistance. IP65 means dust-tight protection and resistance to water jets. IP67 adds temporary immersion protection, commonly tested at one metre for 30 minutes. These figures describe laboratory conditions, not every installation.

A practical box needs more than a high IP rating. Its gasket must compress evenly, cable glands must match cable diameters, and unused openings require sealed plugs. I have seen moisture enter through one poorly tightened gland. Small mistake. Condensation also matters. Temperature changes can draw humid air inside, even when the cover looks secure. Installation records, periodic inspection, and correct drainage design improve reliability. The rating can be misunderstood. It does not automatically prove resistance to chemicals, ultraviolet exposure, impact, or continuous underwater use. Industry enclosure guidance, including IEC 60529 testing principles, should be checked against the actual site conditions.

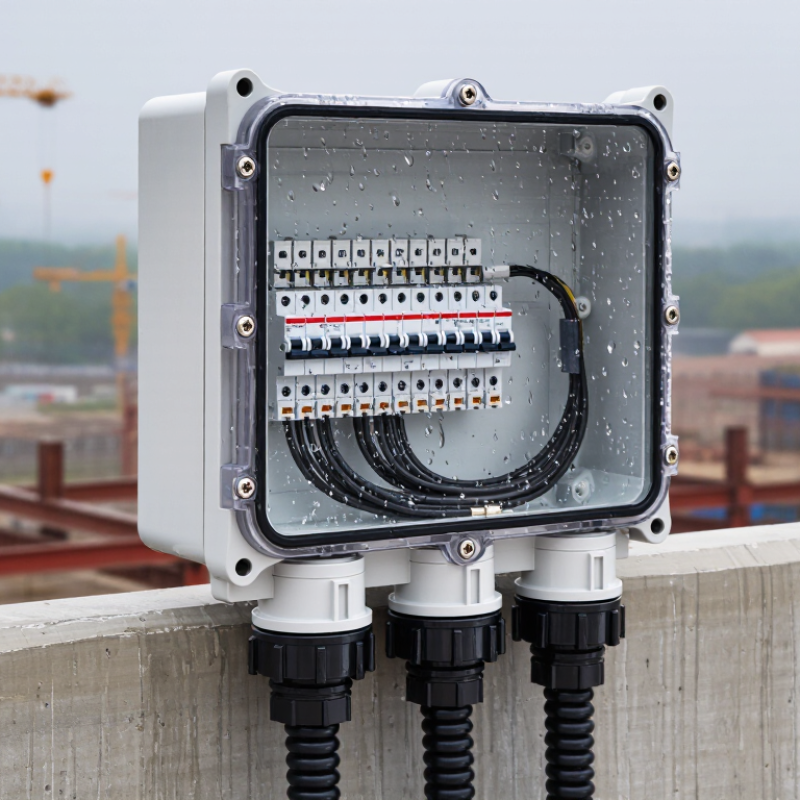

What Is a Waterproof Distribution Box and How Does It Work?

A waterproof distribution box protects electrical connections and branch circuits from water, dust, and accidental contact. Its enclosure, gasket, cable glands, and locking cover work together to reduce moisture intrusion while distributing power safely.

Water Protection Levels Used for Enclosures

The second character in an IP code identifies protection against water. Higher ratings generally indicate more demanding water-exposure testing, but the exact suitability of a distribution box depends on its installation location, cable-entry design, sealing condition, and the manufacturer’s specified test conditions. Ratings are defined by IEC 60529.

How Is a Waterproof Distribution Box Designed?

A waterproof distribution box is designed around controlled protection, not simply a tight plastic shell. Engineers begin by identifying the installation environment, including rain, dust, ultraviolet exposure, temperature changes, and accidental impact. A basement box needs different protection from one installed beside an outdoor pump.

The enclosure usually uses corrosion-resistant polymer or coated metal. Its cover presses against a continuous rubber gasket, creating an even sealing line around the opening. Cable glands are equally important. Each gland must match the cable diameter closely, or water may follow the cable into the box. Small details matter.

Inside, insulated terminals and mounting rails keep conductors separated. Adequate spacing reduces the risk of arcing, especially when moisture or condensation appears. Some designs include a transparent cover, allowing technicians to inspect connections without opening the enclosure. That reduces unnecessary exposure during maintenance.

Drainage also deserves careful thought. A completely sealed box can trap condensation when temperatures rise and fall. A pressure-balancing vent may reduce internal moisture while preserving the required ingress protection. This choice depends on the enclosure’s tested rating and installation position.

In practical work, the gasket is easy to underestimate. Uneven screws, damaged edges, or over-tightening can weaken the seal. A box may look reliable and still fail after repeated weather cycles. Testing should include water spray, cable-pull checks, insulation inspection, and visual examination after opening. No design is perfect. Field conditions often reveal weaknesses that drawings miss.

How Does a Waterproof Distribution Box Work?

A waterproof distribution box protects electrical connections from rain, dust, condensation, and accidental splashes. It receives power through an incoming cable, then divides that power across several outgoing circuits. Inside, terminal blocks, circuit breakers, or fuses control and protect each route. The enclosure also separates live conductors from moisture and physical contact.

Its performance depends on design details, not the word “waterproof.” IEC 60529 classifies IP65 as dust-tight and protected against water jets. IP66 offers stronger water-jet protection. IP67 allows temporary immersion, commonly up to one metre for 30 minutes under test conditions. A sealed gasket presses against the lid, while cable glands prevent water from entering around cables. However, poor tightening can defeat the entire system. That detail is often overlooked.

Tips: Choose the IP rating according to the installation environment. Inspect gaskets for cuts, flattening, or dirt. Keep cable entries facing downward when possible. Leave room for bending cables without stressing terminals. The enclosure should not be mounted where water can collect around its base. In field work, condensation remains a problem, even inside a sealed box. A pressure-equalizing vent or controlled drainage design may help, but it can reduce protection if selected incorrectly. Industry enclosure analyses published by Grand View Research identify energy, infrastructure, and industrial automation as major demand areas, reinforcing the need for reliable moisture protection. Still, installation quality matters more than a label alone.

What Components Are Found Inside the Box?

A waterproof distribution box protects electrical connections from rain, dust, humidity, and accidental splashes. Its enclosure is usually made from tough plastic, fiberglass, or coated metal. The cover closes against a rubber gasket. This seal matters most. If it is twisted, aged, or poorly seated, water can enter despite a high protection rating.

Inside, a mounting plate or DIN rail holds the main components. Terminal blocks receive incoming and outgoing wires in an organized layout. Circuit breakers or fuses interrupt current during overloads or short circuits. Some boxes also contain a residual-current protection device for additional shock protection. A grounding bar connects protective conductors to the enclosure or grounding system. Clear labels help technicians identify each circuit without guessing.

Cable glands surround the entry points. They clamp cables and reduce gaps around insulation. Unused openings need sealed plugs. Otherwise, the enclosure becomes waterproof only in appearance. In field inspections, loose terminals are common, especially after vibration or repeated maintenance. Heat can also reveal a weak connection through discoloration or a burnt smell. It is easy to assume that a sealed box needs no inspection. That assumption is risky. Even a well-designed enclosure requires correct wiring, suitable component ratings, and periodic checks. Experiences in damp installations show that small sealing errors often cause larger failures later.

What Is a Waterproof Distribution Box and How Does It Work? - What Components Are Found Inside the Box?

Component or Feature	Typical Specification or Rating	Function Inside the Box	How It Supports Waterproof Operation
Enclosure	UV-resistant polycarbonate, ABS, fiberglass, or coated metal	Houses and protects the electrical devices, terminals, and wiring.	Creates a physical barrier against rain, dust, splashing water, impact, and accidental contact.
Cover and Seal	Compression-fit cover with elastomeric gasket	Closes the enclosure and maintains pressure around the opening.	The continuous gasket reduces paths through which water and dust could enter.
Cable Glands	Sealed glands sized to the cable outside diameter	Secure incoming and outgoing cables while providing strain relief.	A clamping seal closes the gap around each cable entry and helps prevent water migration.
DIN Rail	Standard 35 mm mounting rail in many panel designs	Provides a secure mounting surface for compact protective and switching devices.	Keeps components organized and prevents loose devices from stressing internal wiring or seals.
Circuit Breaker or Fuse	Rating selected according to conductor size and load current	Interrupts a circuit during an overcurrent or short-circuit condition.	Water resistance protects the protective device from moisture-related faults, while the device protects the circuit itself.
Terminal Blocks	Rated for the system voltage, current, and conductor cross-section	Connect incoming supply conductors to outgoing branch circuits.	Insulated terminal barriers help maintain separation between live conductors and the enclosure.
Neutral and Earth Bars	Dedicated insulated neutral bar and bonded protective-earth bar where required	Provide organized connection points for neutral and protective-earth conductors.	Keeps conductors separated and reduces the possibility of contact caused by moisture or movement.
Busbars or Internal Links	Copper or plated copper conductors sized for the intended current	Distribute electrical power between the incoming supply and multiple branch circuits.	Insulated supports and adequate spacing help prevent arcing in humid or contaminated environments.
Mounting Plate or Brackets	Non-corrosive or corrosion-protected mounting hardware	Secures the enclosure to a wall, equipment frame, or other structure.	Maintains enclosure alignment and helps prevent distortion that could compromise the gasket seal.
Vent or Drain Plug	Optional pressure-compensation or drainage accessory	Manages condensation or pressure changes in selected enclosure designs.	Allows controlled moisture management without leaving a large unsealed opening.
Cable Identification and Labels	Heat-resistant, moisture-resistant labels	Identifies circuits, terminals, isolation points, and warning information.	Supports safe servicing without requiring unnecessary opening or prolonged exposure to the environment.
Ingress Protection	Common designs range from IP54 to IP66; the exact rating depends on construction and testing	Indicates the enclosure’s resistance to solid particles and water ingress.	The first digit addresses solids and dust; the second digit addresses water exposure under defined test conditions.
Operating Principle	Supply in, protected distribution, branch circuits out	Receives electrical power, divides it into separate circuits, and provides protection and isolation.	The sealed enclosure limits environmental exposure while internal protective devices manage electrical risks.

Note: A waterproof distribution box is not automatically safe for every outdoor or wet-location application. The enclosure rating, cable glands, internal devices, grounding method, installation position, and local electrical requirements must all be suitable for the intended environment.

Where Are Waterproof Distribution Boxes Used?

What Is a Waterproof Distribution Box and How Does It Work?

Where Are Waterproof Distribution Boxes Used?

Waterproof distribution boxes protect electrical connections from rain, dust, splashing water, and accidental contact. They are common on building exteriors, solar installations, farms, tunnels, workshops, and coastal facilities. Inside, terminals and circuit protection devices divide incoming power into safer branch circuits. A sealed cover and cable glands limit water entry.

Outdoor renewable energy is a major application. The International Renewable Energy Agency recorded 473 GW of new renewable capacity in 2023, with solar power representing most additions. This growth places more electrical equipment on rooftops, open fields, and remote sites. A distribution box near a solar array can organize several cable runs, isolate faulty circuits, and simplify maintenance under strong sunlight or heavy rain.

Selection depends on the environment. IEC 60529 ratings help define protection levels: IP65 resists dust and water jets, while IP67 supports temporary immersion. However, an IP rating is not a permanent promise. A cracked gland, loose cover, or aging gasket can defeat the enclosure. Small details matter. Installers should check cable diameter, drainage, UV exposure, temperature, and corrosion risk. In coastal areas, ordinary metal hardware may deteriorate faster than expected. This is where specifications can look perfect on paper but perform poorly in practice. Better inspection records and correct torque control would prevent many avoidable failures.
