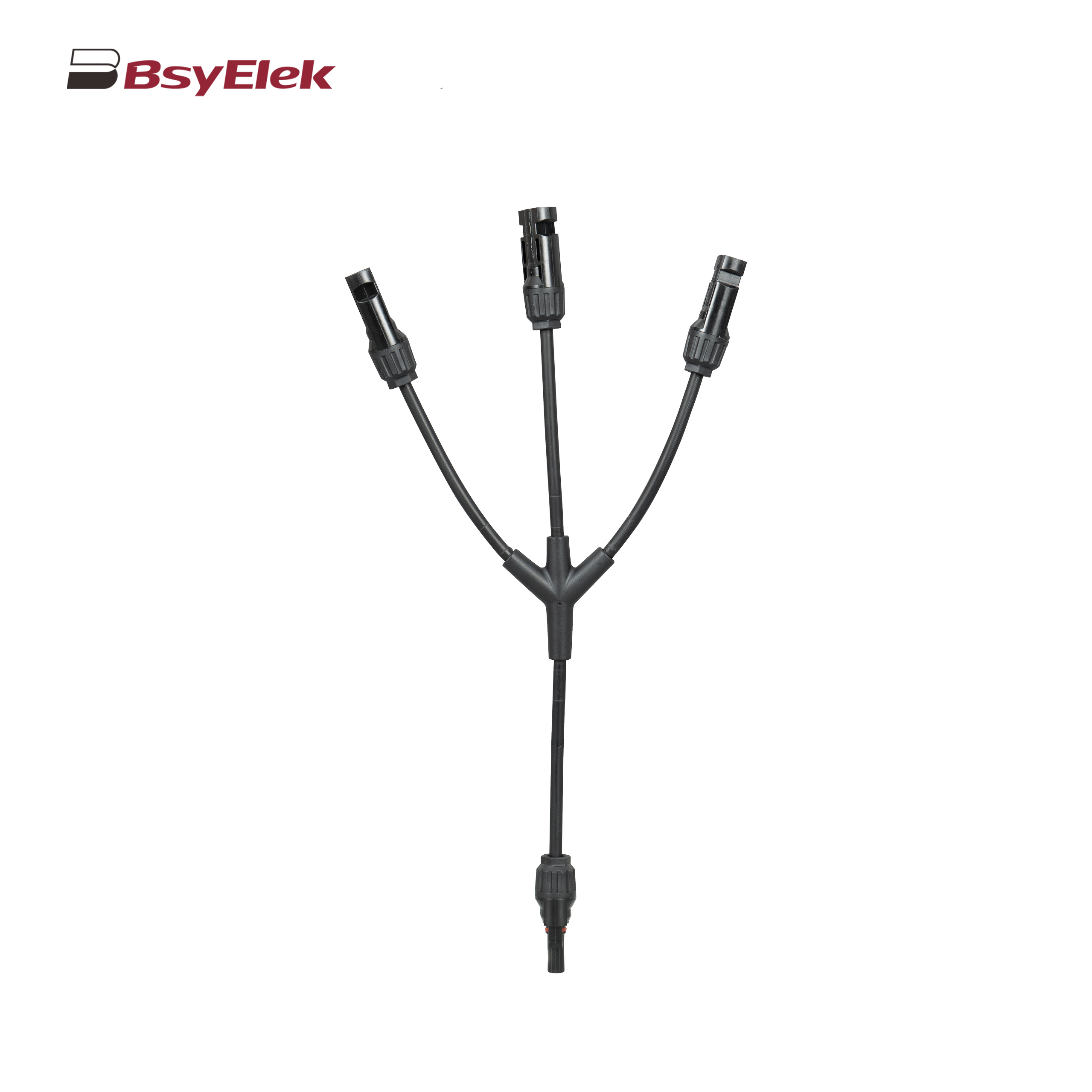

PV-BY-Y 30A 1500V Y Type Branch Connector

Product Features

• PV-BY-Y series 30A 1000V Y type branch connector enhances the performance and reliability of photovoltaic (PV) systems. This connector is designed to meet the strict requirements of solar energy applications, ensuring optimal energy transfer and system lifespan.
• The PV-BY-Y series 30A 1000V Y type branch connector has a rated current of 30A at 1500VDC (IEC) and 800VDC (UL), and is suitable for various solar panel configurations. Its sturdy and durable design enables it to operate efficiently within an ambient temperature range of -40 ° C to+90 ° C, ensuring reliable performance under various environmental conditions.
• One of the prominent features of this connector is its high protection level, which is IP68 when plugged in and IP2X when not plugged in. This level of protection ensures that the connector is dust-proof and can withstand immersion in water, making it an ideal choice for outdoor installations that require exposure to natural environments.
• The contact resistance of the PV-BY-Y sereis connector plug is only 0.5mΩ, which is impressive and can minimize energy loss and maximize efficiency. The contact material is made of high-quality copper with tin plating on the surface to ensure excellent conductivity and corrosion resistance, further enhancing the durability of the connector.
• The PV-BY-Y series 30A 1000V Y-shaped branch connector features a locking system with a snap mechanism designed specifically for compatibility with MC4 connectors. This user-friendly design enables fast and secure connections, reduces installation time, and ensures stable electrical connections.
• In any electrical application, safety is of paramount importance, and this connector will not disappoint. Its flame retardant rating is UL94-HB/UL94-V0, indicating that it can withstand high temperatures and ignition, allowing users to have peace of mind in various applications.
• The PV-BY-Y series connector has a wide range of applications and is compatible with cables of different sizes, accommodating 2.5mm², 4mm², and 6mm² cables. This flexibility can be easily integrated into existing systems and ensures that it can meet specific requirements for various solar panel configurations.
• In addition, the design of this connector can seamlessly integrate with Schottky diodes and photovoltaic fuses, providing additional protection for solar system.

Technical Parameters

Dimensions
